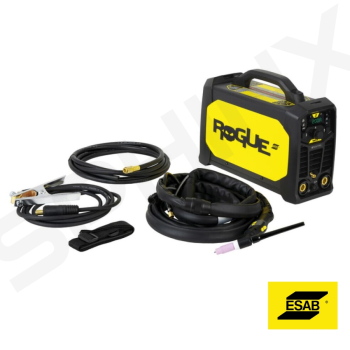

ESAB ROGUE ET 201iP PRO MMA DC TIG 110/230V PACKAGE

Stock Code: 0705002010

4 In Stock

Descriptions

The Rogue ET are powerful high frequency start TIG machines. This easy-to-use welder is designed with a robust and durable housing that is IP23S rated. Weighing below 10 kg this lightweight welder features an ergonomic handle, carrying strap and long extension cables for maximum portability.

Rogue ET offer exceptional arc characteristics, both in TIG and MMA mode. Want more control over your welder? Rogue ET provide several TIG parameters that can be easily adjusted including gas pre flow, start current, ramp up time, ramp down time, finish current and post flow. All of which can be programmed using 2 or 4 stroke mode for greater arc control. Additionally, Rogue ET offers a pulse feature with background current control and frequency adjustments up to 500 Hz for better heat input control. In Stick mode, Hot Start or Arc Force can be adjusted according to individual welding preferences or applications.

New Pulse MMA functionality enhances the performance and improves the heat input control, to minimize thin gauge materials distortion , facilitate out-of-position welding with no undercuts and reducing spatter, thus helping to effectively avoid several welding defects.

Specifications
Input Voltage	120-230 ±15% VAC , 1 Φ, 50/60 Hz
Stick (SMAW) Welding Output	200 A28.0 V (230 V) @ 25 % Duty Cycle 129 A25.2 V (230 V) @ 60 % Duty Cycle 100 A24.0 V (230 V) @ 100 % Duty Cycle
TIG (GTAW) Welding Output	200 A18.0 V (230 V) @ 25 % Duty Cycle 129 A15.2 V (230 V) @ 60 % Duty Cycle 100 A14.0 V (230 V) @ 100 % Duty Cycle
Setting Range	10-140 A 10-200 A
Current Range	10-200 A
Open Circuit Voltage	78 VDC
Energy Save Mode	50 W
Operating Temp	-10 to +40 °C
rated kVA	7 kVA
Enclosure Class	IP23S
Dimensions, L x W x H	403 x 153 x 264 mm
Weight	9.6 kg
