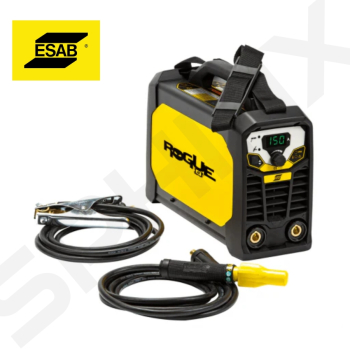

ESAB ROGUE ES 151iP MMA 230V + 3M MMA CABLE SET

Stock Code: 0705002006

Contact office for availability

Descriptions

The Rogue ES is a robust and durable power source for the professional welder. The machine provides state-of-the-art welding performance and reliability through use of the latest high performance power electronics and Digital control; ensuring a precise consistent arc.

The Rogue ES provide a smooth DC (Direct Current) welding power which allows you to weld a variety of metals, such as alloyed and non alloyed steel, stainless steel, and cast iron. Featuring adjust Arc Force and Hot Start settings for more control over your arc. Digital micro-processor offer more control over all arc parameters and provides best-in-class welding performance. The Rogue ES 181iP/ 181iP PRO/ 201iP PRO can be used with electrodes up to 4.0 mm and Rogue ES 151iP can tackle up to 3.2 mm electrodes.

New Pulse MMA functionality enhances the performance and improves the heat input control, to minimize thin gauge materials distortion, facilitate out-of-position welding with no undercuts and reducing spatter, thus helping to effectively avoid a number of welding defects.

Rogue ES can TIG weld mild-steel or stainless steel via "LIVE TIG" functionality for even more versatility.

Specifications Input Voltage 230 ±15% VAC , 1 Φ, 50/60 Hz Stick (SMAW) Welding Output 150 A26.0 V (230 V) @ 25 % Duty Cycle
97 A23.9 V (230 V) @ 60 % Duty Cycle
75 A23.0 V (230 V) @ 100 % Duty Cycle TIG (GTAW) Welding Output 150 A16.0 V (230 V) @ 25 % Duty Cycle
97 A13.9 V (230 V) @ 60 % Duty Cycle
75 A13.0 V (230 V) @ 100 % Duty Cycle Setting Range 10-150 A Current Range 10-150 A Open Circuit Voltage 63 V Energy Save Mode 30 W Operating Temp -10 to +40 °C rated kVA 6.9 kVA Enclosure Class IP23S Dimensions, L x W x H 403 x 153 x 264 mm Weight 6.8 kg
